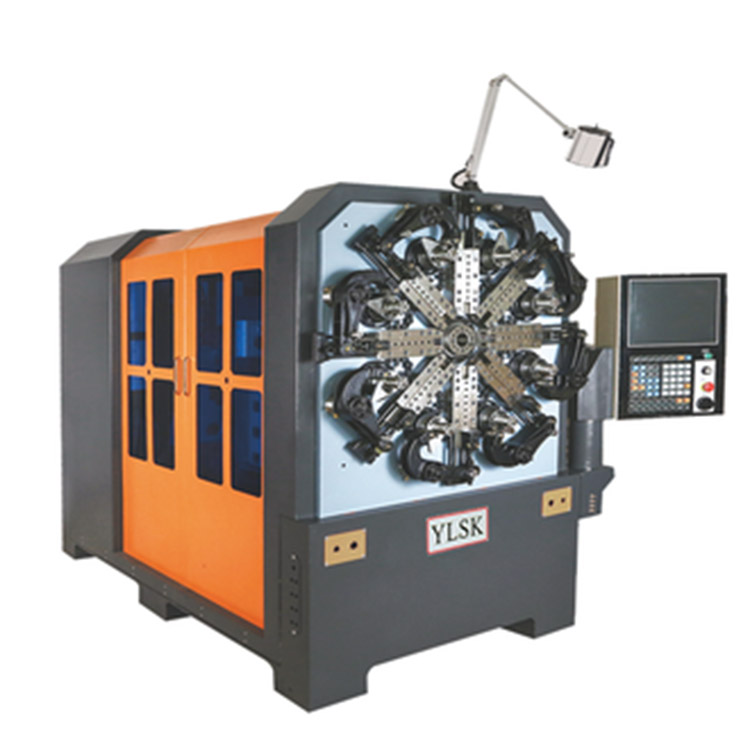

    YLSK-840RW Spring Forming Machine

    Introduction：
    YLSK-840RW CNC Universal spring forming machine includes Taiwan Controller and Japanese servo motors Divided into Cams, Mandrel (Quill), Wire Rotation, Wire Feed & Coiling device/spinner (Optional) , Five axis synchronous operation. Online programming and debugging is convenient.Cams are fixed on Eight Slides eight slide, results forward & back-word movement of slides.wire feed accuracy is 0.01mm.

    GET A QUOTE

    PRODUCT DESCRIPTION

    Each Axis position, Length of wire, Production Speed, Production Quantity are all displayed on the screen.
    Applications: Various types of wire form shapes, compression springs, tension spring, torsion spring, conical shaped spring, flat spring and other special shaped spring. Manufacturing Industries like, Electronics, Toys, Home appliances, Sports equipment, Automotive and many other industries where precision springs required.

    TECHNICAL PARAMETERS


    Model YLSK-840RW
    Machining wire diameter Ø0.8～Ø4.0 mm
    Axis Count 5-Axis
    Max feeding LengthUnlimited Unlimited
    Program Storage 2000 Max
    Instruction value of wire feed ±0.01～±9999.99mm
    Instruction value of cam ±0.10～±359.90
    Servo motor of wire feed 5.5 kg
    Servo motor of cam 5.5 kg
    Servo motor of Z-axis (Quill) servo 1 kg
    Servo motor of wire rotation 4.4 kg
    Servo motor of Coiling Spinner (Optional) 1 kg
    Machine size 1500×2350×1900 mm
    Weight 3500 kg
    Power  380V 3-Phase
