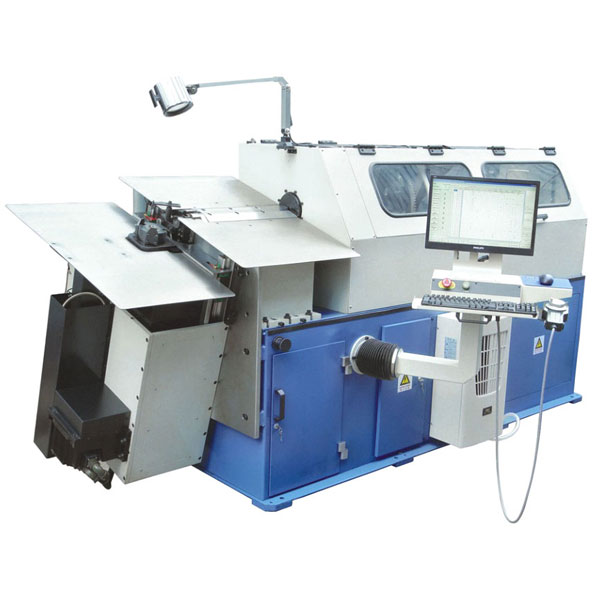

XD-WF607 Wire Forming Machine

Introduction：
1. XD-WF607 is a seven axis wire forming for making all kinds of wire forming products.
2. XD-WF607 adopts advanced computer technology.
3. Optional accessories: bending tools, rolling axis, safety door.

GET A QUOTE

PRODUCTS

Spring Machine

Spring Coilers

Compression Spring Machine

Extension Spring Machine

Wire Forming Machine

Wire Bending Machine

Camless Spring Machine

Automatic Wire Feeder Machine

Spring End Grinding Machines

Spring Temper Furnace

Spring Machine Controller

Tube-coilers

Wire-straighteners

Spring Machine Toolings

DETAILS

Product Advantage

1. XD-WF607 wire forming machine is a seven axis wire forming for making all kinds of wire forming products.
2. XD-WF607 wire forming machine adopts advanced computer technology.
3. Optional accessories: bending tools, rolling axis, safety door.

Technical Parameters

Model:	XD-WF607
Wire diameter:	Ø3-8mm（soft wire） Ø3-5mm（hard wire）
Max. wire feeding speed:	70m/min
Dimensions (LDH):	3300×1660×1600mm
Machine Weight:	3000KG
Distance between the bending head and machine body:	700mm

Axes Feature

Bending Pin axis:	3.0KW
Support Pin axis	3.0KW
Bending Head U/D axis:	3.0KW
Support Table U/D axis:	3.0KW
Cutting axis:	3.0KW
Wire Feed axis:	4.4KW
Rotating Wire axis:	3.0KW

Sample Display

This CNC extension spring machine produce various ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.

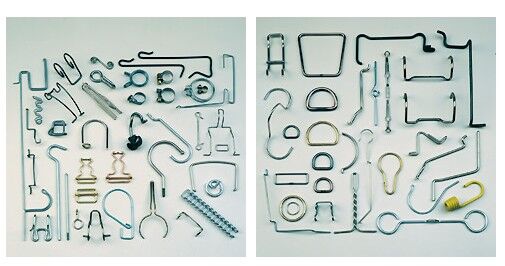

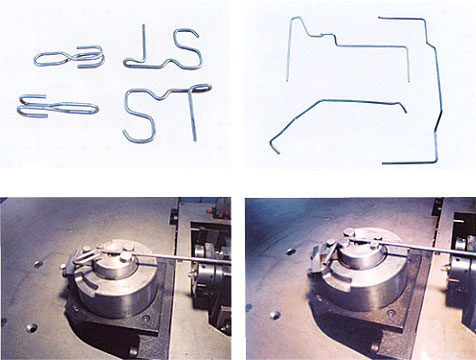

wire forming machine samples
