Introduction

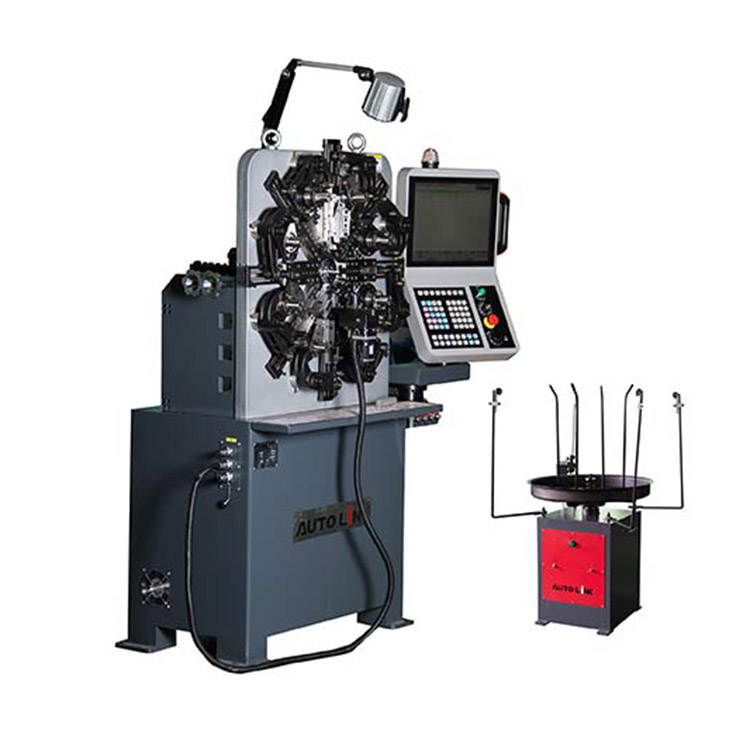

Auto Link is a leading manufacturer of 3/4 AXIS CNC Wire Forming Machine an advanced and upgraded version of the conventional CNC bending and spring coiling machines. The machines come in 4 models, with the 3-axis CNC wire-forming machine being the most basic one. At Auto Link, the machines are custom-made to meet the specific requirements of the clients. The Wire Forming Machine operates similarly to the wire bending and spring coiling machines, but with the added capability of producing complex spring shapes such as compression, torsion, extension, and tower springs.
Auto Link has established itself as a reliable and efficient manufacturer of CNC Wire Forming Machines that cater to the diverse needs of its clients. The wire-forming machine processes input wire with a diameter range of 0.3mm to 3.5mm. Decoiler straightens the wire with help of a straightener & wire feeder roller. Free-hand arms produce wire forms & feeder gives wire through the quilling axis to bending tools.
PARAMETERS
| Model | WF-20 |
| Wire Diameter | 0.3-2.5mm |
| Axis | 3-4 |
| Max.Wire Feed Value | 9999.99mm |
| Min.Wire Feed Value | 0.01mm |
| Rotary Quill Axis | 1.0KW |
| Wire Feeding Axis | 2.7KW |
| Spinner Axis(Optional) | 0.4KW |
| Cam Axis | 2.7KW |
| Compressor Air Pressure | 5-6kg/cm |
| Probe | 4pcs |
| Dimension(M) | 1.4*0.7*1.6 |
| Weight | 750KG |
Applications
- Manufacturing of automotive parts: Seat frames, door locks, and springs.
- Production of wire baskets and shelves: Create wire baskets and shelves.
- Medical equipment: Orthopedic implants, surgical instruments, and dental devices.
- Electrical industry: Electrical components, such as circuit breakers, connectors, and switches.
- Consumer products: wire hangers, coat racks, and jewelry.
